We design our panels keeping in mind the experience gained from installation contracts resulting in increased safety of personnel and equipment, ease of maintenance, installation and commissioning. The design incorporates a host of safety and convenience features. We meet the requirement of international standards along with compliance to local standards and regulations. We have type testes our Power panels for short circuit withstand capacity of 50kA RMS 1 second.

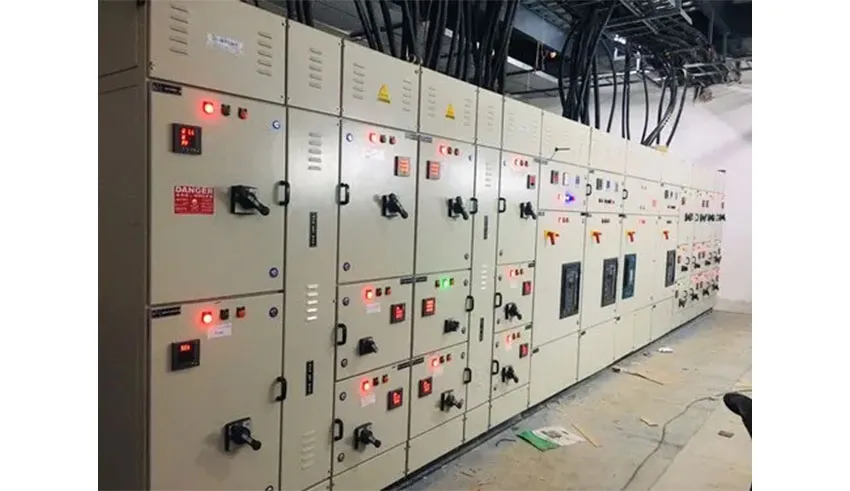

Power control Centre, in which your main incomer is directly connected to your LT transformer either by bus duct or cable & all protection given to this incomer i.e. overcurrent & earth fault relay, restricted earth fault relay. Also this panels have DG incomer as per client requirement of continues power supply even if main supply will be OFF. PCC Panel also includes outgoing feeders like PDB, MLDB and APFC & MCC feeders' incomer.
Designed to meet the requirement of IS-8623 on Factory build assemblies
Busbar rating upto 4000A
Short circuit withstand capacity of 50kA for 1 sec RMS
Totally enclosed, Cubicte type compartmentalized construction
Free standing, Floor mounting
Extendable on both sides
Cable entry from Top & Bottom
Customer choice of switchgear
DMC/SMC reinforced FRP material for bus bars support.
Front and Rear access
Single / Double Busbar system
Auto source changeover
PLC logic for Source changeover
Distribution Panels suitable for installations
Metal treatment with seven tank process followed by electrostatic power coating.
Rated insulation : 1000 volts, 50 Hz..
Rated Operational Voltage : Power circuit-440 Volts AC, 3Phase 4wire or 3 wire. Control circuit-110 Volts, 220 Volts, 415 Volts AC or 220 Volts, 110 Volts DC.
Ambient Temperature : 40 c
Degree of protection : IP protection: IP 42 to IP 65
Minimum Busbar clearance : Phase to Phase 25 Phase to Neutral 25mm..
